Frame Alignment: A Critical Step in Auto Body Repair After Accidents

Synopsis

Mr. Dent Collision Repair performs certified frame alignment to restore a vehicle’s structure following a collision. This service supports the proper function of safety systems, maintains handling, and helps retain resale value. The facility uses OEM-compliant measuring tools and follows manufacturer repair procedures to correct alignment issues that affect airbag deployment, steering accuracy, and suspension geometry. Structural repair must meet factory standards to help preserve performance and safety following impact damage.

Key Takeaways

  • Frame alignment is one of the most important structural procedures after an auto collision.
  • Even minor frame misalignments can impact safety, drivability, and future repairs.
  • A professional auto body shop uses advanced equipment to measure and correct frame issues.
  • Customers should choose an experienced auto body repair shop that specializes in structural repairs.
  • Mr. Dent Collision Repair performs precision frame alignment using OEM-compliant tools and standards.

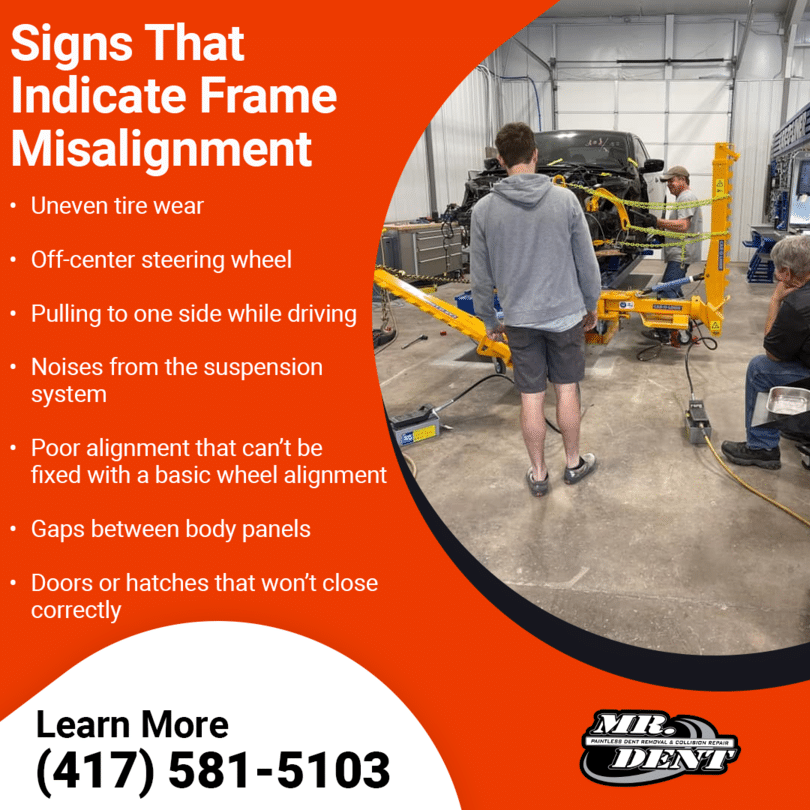

Frame Misalignment Signs

Introduction: The Importance of Structural Accuracy

After an accident, many vehicle owners focus on visible damage such as dents, scraped paint, or cracked headlights. Yet one of the most important safety-related issues—frame alignment—often goes unrecognized by the untrained eye. If frame alignment is not properly corrected, the vehicle’s structure may be compromised, even when surface damage seems minimal. That’s why choosing a qualified auto body repair shop with structural expertise and professional measuring equipment is important after any collision.

Whether the collision involved a minor impact or a major crash, frame misalignment can alter steering accuracy, cause uneven tire wear, disrupt suspension geometry, and compromise passenger protection in future accidents. Most modern vehicles are built with unibody frames that absorb crash energy and protect occupants during impact. Even small deviations in the frame can interfere with airbag timing and weaken the effectiveness of crumple zones.

This article outlines the role of frame alignment in modern auto body repair, how it is measured and corrected, and what vehicle owners should consider when choosing a qualified car body shop after a collision.

What Is Frame Alignment?

Frame alignment is the process of inspecting and correcting a vehicle’s structural geometry to restore it to manufacturer-approved specifications. Whether the vehicle uses a unibody or a body-on-frame construction, the goal of frame alignment is to bring all structural components back into proper alignment based on precise factory dimensions. Even a few millimeters of deviation can affect how the vehicle drives, handles, and responds to future impacts.

Most modern passenger vehicles are built using a unibody structure, where the frame and body function as a single integrated unit. Because the frame is part of the body, any collision that affects the outer panels, suspension, or crumple zones can also shift the underlying structural alignment. On the other hand, larger trucks and older models may use body-on-frame construction, where the body is mounted on a separate frame. In either design, misalignment must be corrected to prevent further wear and safety issues.

At a professional auto body shop or auto body repair shop, frame alignment is done using hydraulic frame machines and computerized measuring tools capable of identifying misalignments within fractions of an inch. These systems compare the vehicle’s current measurements to OEM data to identify structural areas that require correction.

Proper frame alignment restores:

  • Safe and predictable steering and braking
  • Proper suspension performance
  • Balanced tire wear
  • Crash energy absorption
  • Airbag timing and deployment functionality

When performed at a certified car body shop or body repair shop, frame alignment becomes an essential step in making sure the vehicle is safe to drive after a collision.

Signs of Frame Misalignment After a Collision

Frame misalignment isn’t always easy to spot. A vehicle may appear to operate normally on the surface, but underlying structural damage can still be present. When the frame or unibody structure is even slightly distorted, the entire geometry of the vehicle can be affected, often in ways that don’t show up until the car is already back on the road. Recognizing early signs of frame misalignment can help prevent more costly repairs and dangerous driving conditions.

Common indicators of structural misalignment include:

  • Uneven or rapid tire wear
  • A steering wheel that sits off-center even when driving straight
  • The vehicle pulling consistently to one side
  • Clunking or creaking noises from the suspension system
  • Alignment issues that cannot be resolved through standard suspension adjustments
  • Uneven gaps between body panels, such as doors, fenders, or bumpers
  • Doors, trunks, or hatches that stick, sag, or fail to latch securely

These symptoms often suggest more than cosmetic damage. A compromised frame can place added strain on mechanical components, reduce fuel efficiency, and limit the vehicle’s ability to absorb impact in the event of another collision. For vehicles equipped with advanced driver assistance systems (ADAS), even minor misalignment can affect sensor positioning and system accuracy.

That’s why a qualified auto body shop or auto body repair shop will conduct a full structural inspection before starting repairs. A professional car body shop uses precision measuring tools and follows manufacturer guidelines to identify and correct frame issues as part of responsible auto body repair. Getting the vehicle back to factory specifications isn’t just good repair practice—it’s necessary for safety.

How Auto Body Shops Measure Frame Damage

Determining whether a vehicle’s structural integrity has been compromised requires more than a visual inspection. A professional auto body shop uses a combination of digital measurement tools, OEM data, and hydraulic frame equipment to diagnose and correct frame damage. These procedures help bring the frame back to its original shape, allowing the vehicle to perform safely and predictably.

At a qualified auto body repair shop, the frame inspection process starts with electronic measuring systems. For example, Mr. Dent Collision Repair uses the Car-O-Liner Vision2 X3, a computerized system that reads precise measurement points across the vehicle’s structure. The software compares these measurements against original factory specifications to identify misaligned zones, even when the exterior appears intact.

Technicians use key tools and resources to measure frame damage accurately:

  • 3D laser measuring systems that read in real-time and detect millimeter-level distortions.
  • OEM repair databases and structural data sheets, which provide exact reference points for every make and model.
  • Blueprinting software that helps plan the entire repair sequence based on factory guidelines.
  • Frame racks with hydraulic towers to physically pull misaligned components back into the correct position.
  • Cross-measurement tools and body dimension charts to supplement digital readings when necessary.

These tools are essential for identifying hidden or secondary structural damage that might otherwise go unnoticed. This level of diagnostic accuracy is why working with a trusted car body shop or body repair shop is important after any collision. Correcting the frame is not just about alignment—it is about restoring the vehicle’s safety, handling, and crashworthiness to pre-accident conditions.

Correcting Frame Damage: The Alignment Process

After identifying structural misalignment, the next step in the repair process is to restore the vehicle’s frame or unibody to its original factory specifications. This is a precise, methodical procedure that a trained technician must perform at a certified auto body repair shop or car body shop. Frame correction is not just about getting the car to “look straight.” The vehicle must meet exact manufacturer tolerances to drive safely and protect occupants in a future impact.

To begin, the vehicle is secured onto a frame rack, a large, anchored platform that allows technicians to access and manipulate structural points of the chassis. Using hydraulic towers and chains, technicians apply controlled force to predetermined areas, pulling or pushing the frame back into alignment. These actions are based on OEM structural repair guidelines, which provide exact measurements and diagrams for each model.

Throughout the alignment process, technicians use computerized measuring systems to verify that structural points meet the original dimensions. Multiple measurements are taken before, during, and after each pull. This ensures accuracy and prevents overcorrection or stress on surrounding parts.

In some cases, correction includes more than just straightening. The auto body repair shop may need to:

  • Remove and replace crushed frame sections
  • Weld in new structural components
  • Reinforce critical areas with OEM-approved materials
  • Prepare and recalibrate ADAS and safety systems afterward

Technicians at Mr. Dent Collision Repair are certified in structural repairs for major manufacturers like Chevrolet, GMC, Ford, and Mercedes-Benz, making the body repair shop a reliable choice for accurate repairs. These technicians follow brand-specific instructions to preserve crash performance, alignment geometry, and part integrity. Frame correction is a key part of responsible auto body repair, and skipping any step can compromise the safety and performance of the vehicle.

Why Frame Alignment is Critical to Safety

Frame alignment affects far more than the visual appearance of a vehicle. When a vehicle is involved in a collision, even if the exterior damage seems minor, the structural integrity may have been compromised. Today’s vehicles are engineered with unibody frames and built-in crumple zones—designed to absorb and redirect crash energy away from occupants. If the frame is misaligned and not corrected to factory specifications, these engineered safety features may no longer function as intended during a subsequent impact.

A properly aligned structure is essential to the performance of modern passive and active safety systems. Several key systems rely on correct frame geometry:

  • Airbag sensors and deployment timing
  • Crash sensors calibrated to precise points
  • Front and rear bumper reinforcement alignment
  • Side-impact protection bars and intrusion resistance

Even slight deviations in frame structure can disrupt how energy travels through the vehicle during a collision. This can lead to airbag deployment delays, incorrect energy absorption, or failure of structural components under stress. For this reason, every reliable auto body repair shop or car body shop must inspect and correct structural alignment before moving forward with cosmetic repairs. Restoring factory dimensions is essential to vehicle safety, especially when handling repairs after moderate to severe impacts.

Drivability and Performance After Frame Realignment

Frame realignment affects more than structural integrity—it also plays a major role in how a vehicle performs on the road. A misaligned frame can cause a range of drivability issues, some of which may develop gradually after an accident. Drivers may notice uneven or rapid tire wear, off-center steering, poor fuel economy, and even inconsistent or unstable braking under normal driving conditions. These problems are not always visible during a basic inspection, which is why frame diagnostics should be a priority after any collision.

A qualified auto body repair shop uses precision equipment to return the frame to factory-approved specifications. When the structure is restored correctly, the suspension geometry also returns to its intended configuration. As a result, the wheels align properly, the steering wheel sits centered, and the vehicle tracks straight without pulling to one side. Fuel consumption also improves when the vehicle rolls without added friction or resistance.

If suspension components such as the subframe, control arms, tie rods, or bushings are damaged or replaced, these parts are tested during and after reassembly. A reputable auto body shop or body repair shop will also complete a final road test to confirm drivability before releasing the vehicle. This is a critical quality control step that verifies performance, safety, and handling are all restored.

Choosing a skilled car body shop that specializes in post-collision structural repair is essential for anyone looking to maintain safe, efficient, and predictable vehicle performance after an accident.

Choosing the Right Auto Body Repair Shop for Frame Work

Frame alignment is one of the most technical and important aspects of collision repair, but not every auto body shop is equipped to perform it correctly. Vehicle owners should take the time to verify whether a body repair shop has the right equipment, training, and certifications before authorizing structural work. Poorly executed frame repairs can lead to long-term safety risks and mechanical problems.

Here are the key questions drivers should ask before choosing an auto body repair shop for frame alignment:

  • Does the shop use computerized measuring systems to verify frame specifications?
  • Are technicians certified to perform structural repairs and alignments?
  • Is the auto body repair shop certified by vehicle manufacturers (OEM certifications)?
  • Will the technicians follow OEM repair documentation and measurement data?
  • Does the shop perform post-repair road testing to confirm drivability?

Shops that can answer “yes” to all of these questions are more likely to deliver safe, accurate repairs.

Mr. Dent Collision Repair in Ozark, Missouri, is an OEM-certified car body shop that meets these qualifications. The facility uses digital frame measuring equipment, certified technicians, and factory-approved repair methods. Structural repairs are verified against manufacturer specifications, and every vehicle undergoes a thorough test drive before being returned to the customer.

Auto Body Shop in Ozark, Missouri

How Frame Alignment Affects Resale Value

Proper frame alignment plays an important role in maintaining a vehicle’s resale value after a collision. When repairs are performed by a certified auto body repair shop with clear documentation and measurements, the structural integrity of the vehicle can be confidently verified. Documentation may include before-and-after photos, digital frame readings, pre- and post-repair scan reports, and detailed invoices showing the use of OEM parts and procedures.

A car repaired at a qualified body repair shop is more likely to retain its value, especially when potential buyers or dealerships evaluate its accident history. Accurate repairs backed by records give buyers confidence that the vehicle is structurally sound and safe to drive.

By contrast, a vehicle with poorly documented or incomplete structural repairs—especially those not done by a professional car body shop—often receives lower trade-in offers and draws concern from future owners, insurers, and appraisers.

Protecting Your Investment After a Collision

Following an accident, frame alignment is one of the most important services a vehicle can receive. It goes beyond restoring the way a car looks—it restores the way it performs, drives, and protects the people inside. Structural alignment is not optional. It’s a repair process that directly affects safety systems, handling, and the overall value of the vehicle.

A trusted auto body repair shop is essential when it comes to frame correction. Proper equipment, OEM repair documentation, and trained technicians make the difference between a repair that lasts and one that leads to problems down the road. Choosing a qualified body repair shop helps protect the investment made in the vehicle, whether it’s a daily driver or a newer model still under warranty.

Mr. Dent Collision Repair in Ozark, MO, is an auto body shop known for precise frame repair. The facility combines computerized measuring tools, certified staff, and manufacturer-specific procedures to bring vehicles back to factory-approved condition. From sedans and SUVs to pickups, the shop provides high-quality repair work for customers who value long-term reliability and safety.

Drivers experiencing symptoms of misalignment—or who have recently been in a collision—should schedule an inspection with a professional auto body repair shop. The longer frame damage goes unchecked, the more likely it is to cause further mechanical issues. Professional alignment protects not only the vehicle’s structure but also the people who ride in it every day.
